Principle

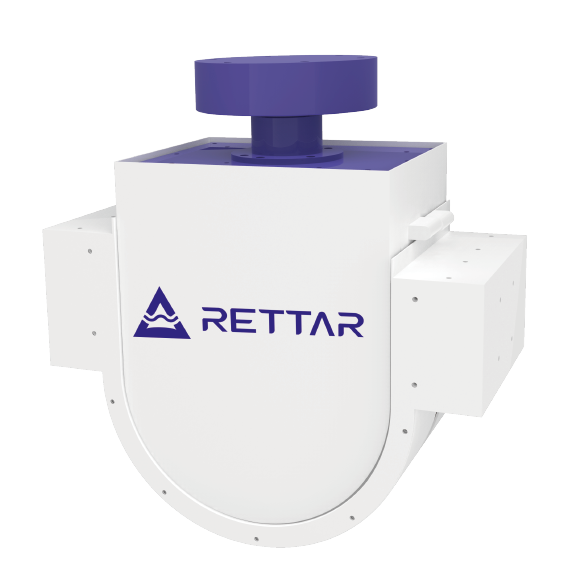

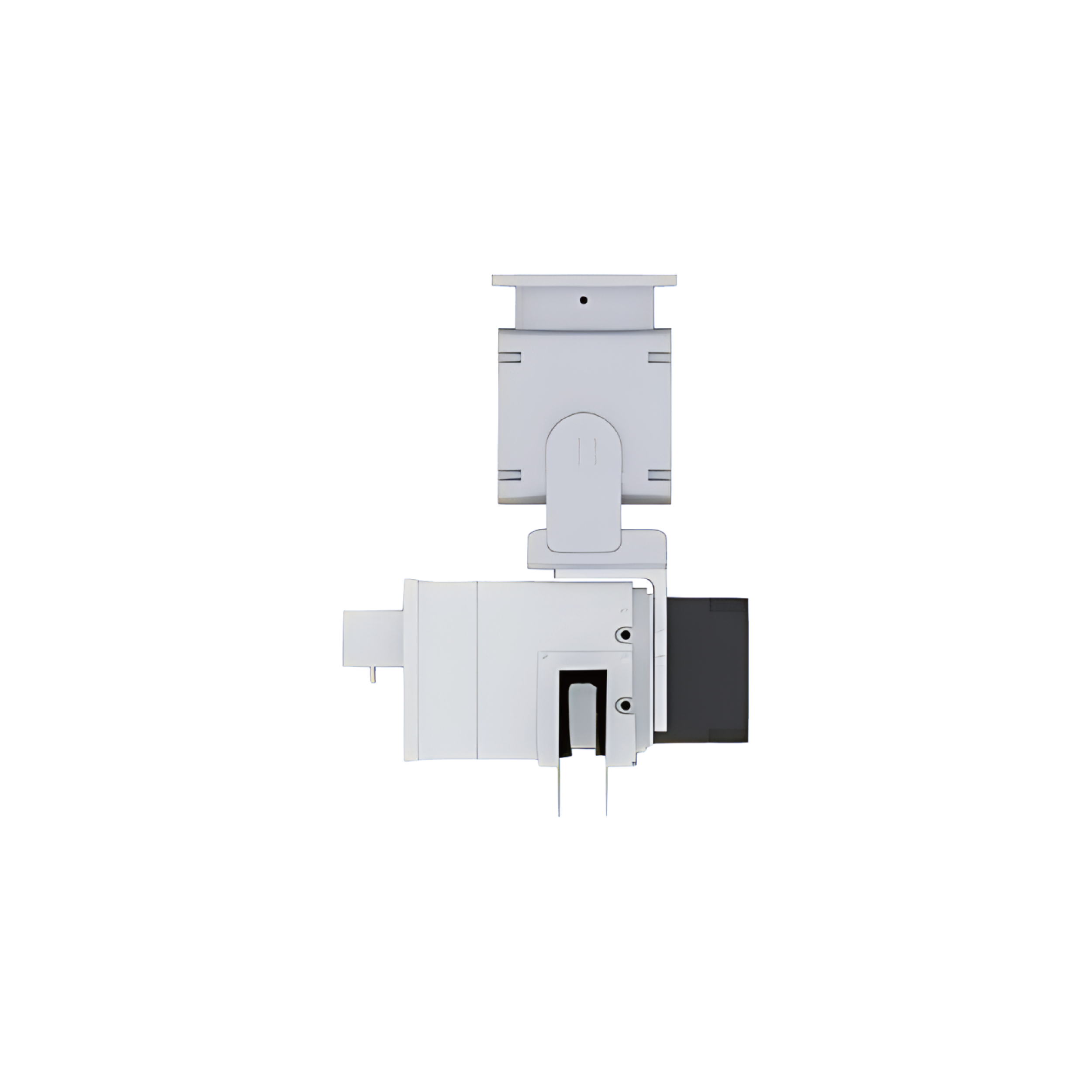

The 3DPro2501 series laser scanner adopts laser ranging technology. The laser beam is emitted from the laser radar to the outside, and when the laser beam is irradiated on the surface of the material, a reflected beam is generated. It is received by the photoelectric sensor inside the laser radar. By measuring the flight time of the laser beam from emission to reception, the distance between the material surface and the laser radar can be obtained. The 3DPro2501 laser scanner uses a 2D LiDAR to emit a laser line, paired with a precision synchronized rotating gimbal or swing structure, allowing the 2D LiDAR to rotate or swing in another dimension, thereby achieving 3D scanning of the material surface.
Advantage
3D imaging:Accurately reflecting the 3D shape of material.
Point cloud data output:More simple process automation.
Real-time inventory measurement:Material flow can be obtain at once.
Warning for material volume and level exceeding limit.
Function of querying, storing, and exporting historical material data.
Inventory operation plan management and manual inventory control.

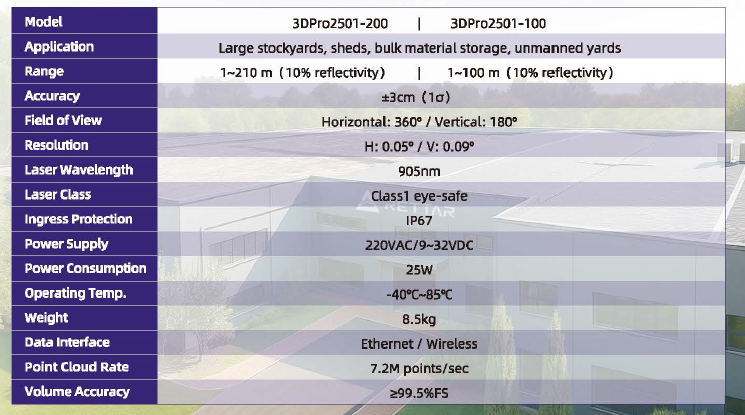

Specifications
Access detailed technical specifications by downloading our datasheet.
