Principle

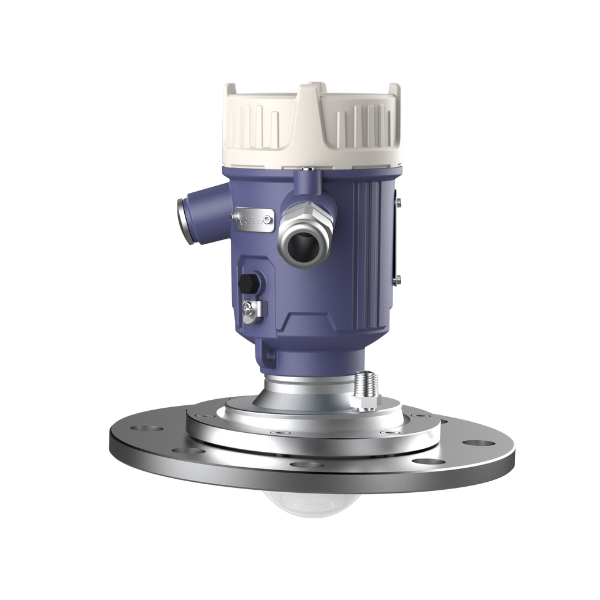

The CPR6400 and CPR6900 series radar level meters use FMCW frequency modulated continuous wave technology for 80 GHz radar level meters. The radar emits a 76-81GHz high-frequency microwave signal with linear frequency modulation, which is emitted from the radar antenna. When the microwave signal encounters the surface of the measured medium, some of its energy is reflected back by the surface of the medium and received by the radar antenna. A part of the microwave transmitting signal in radar is mixed with the received signal to obtain the difference frequency signal. The differential frequency signal is obtained by Fourier transform algorithms such as FFT or DFT to obtain the differential frequency spectrum signal, thereby obtaining the frequency difference. According to the linear frequency modulation signal frequency difference is proportional to time thus the time difference is obtained. Based on the time difference and the distance between the antenna and the surface of the measured medium, the distance between the antenna and the surface of the measured medium can be calculated.
Advantage
Powerful computing power: (triple-core quad-core) LCD display, mainboard, microwave board, each with an independent MCU. Both the LCD and mainboard have a single ARM core, while the microwave board has a dual ARM core.
High focus：(The min beam angle can reach 3 °) Suitable for installation in containers with obstacles such as stirring, heating pipes, and ladders. A smaller beam angle allows the beam to avoid internal obstacles, without interfering echoes, ensuring accurate measurement by the instrument. Suitable for installation of long risers. Suitable for glass window installation.
Multiple debugging methods: Debugging via Bluetooth connection to radar(mobile phone, tablet). Debugging through upper computer software (RS485). Debugging through a HART communicator can display the echo curve. LCD debugging. Tank side monitor debugging.
Multi echoes processing capability: Used in conjunction with corresponding instruments,it can output the measured value of solid level and liquid level. Support switch quantity/4…20mA/HART/RS485

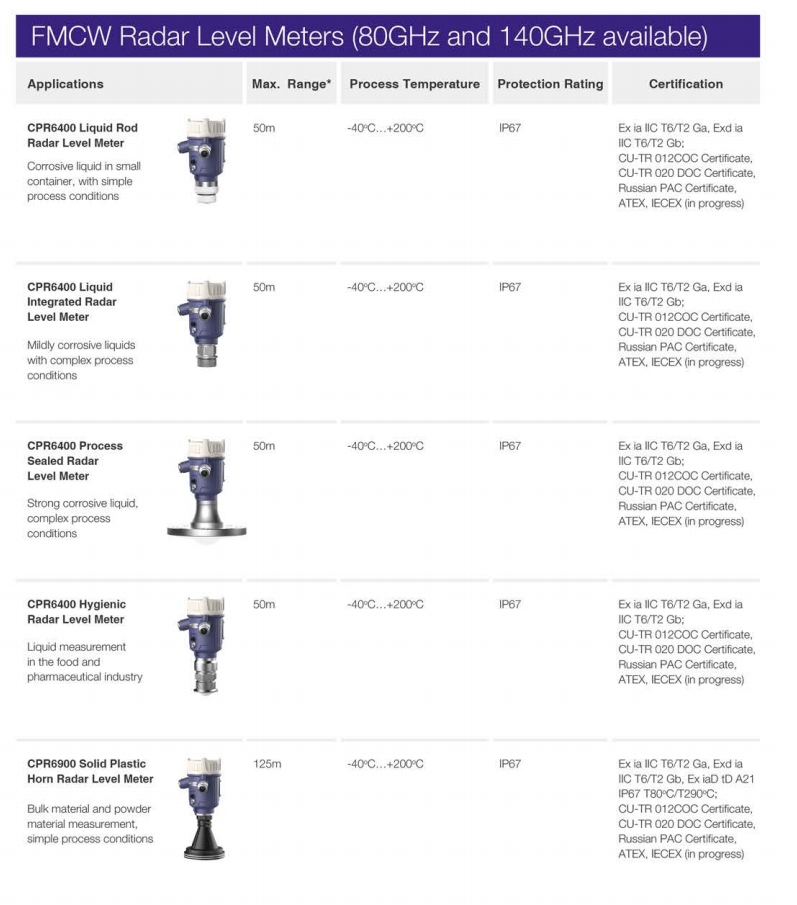

Specifications
Access detailed technical specifications by downloading our datasheet.
