Principle
The tuning fork density meter measurement system operates based on the principle of tuning fork vibration measurement. This vibrating element is similar to a two tooth tuning fork, where the fork vibrates due to a piezoelectric crystal located at the root of the tooth. The frequency of the vibration is detected by another piezoelectric crystal, which is inversely proportional to the density of the process fluid. The processor calculates the density signal based on this relationship. The resonance frequency is a function of medium density: ρ = K 0+K1 T+K 2T2 ρ - Liquid density T - The vibration period output by the sensor K0, K1, K2 - The constant of the sensor, calibrated at the factory.
Advantage
The tuning fork has a sensitive response and a detection accuracy of up to ten thousandths.
Adopting segmented functions, periodic operations, linear curve calibration, and full range coverage.
Equipped with temperature compensation function, covering any point within the measurement range.
The tuning fork has a sensitive response and a detection accuracy of up to tens of thousands of parts.
Not affected by viscosity and pressure (with viscosity/pressure compensation).
Suitable for a wide temperature and density measurement range.
Suitable for harsh measurement environments.
Long service life of instruments.

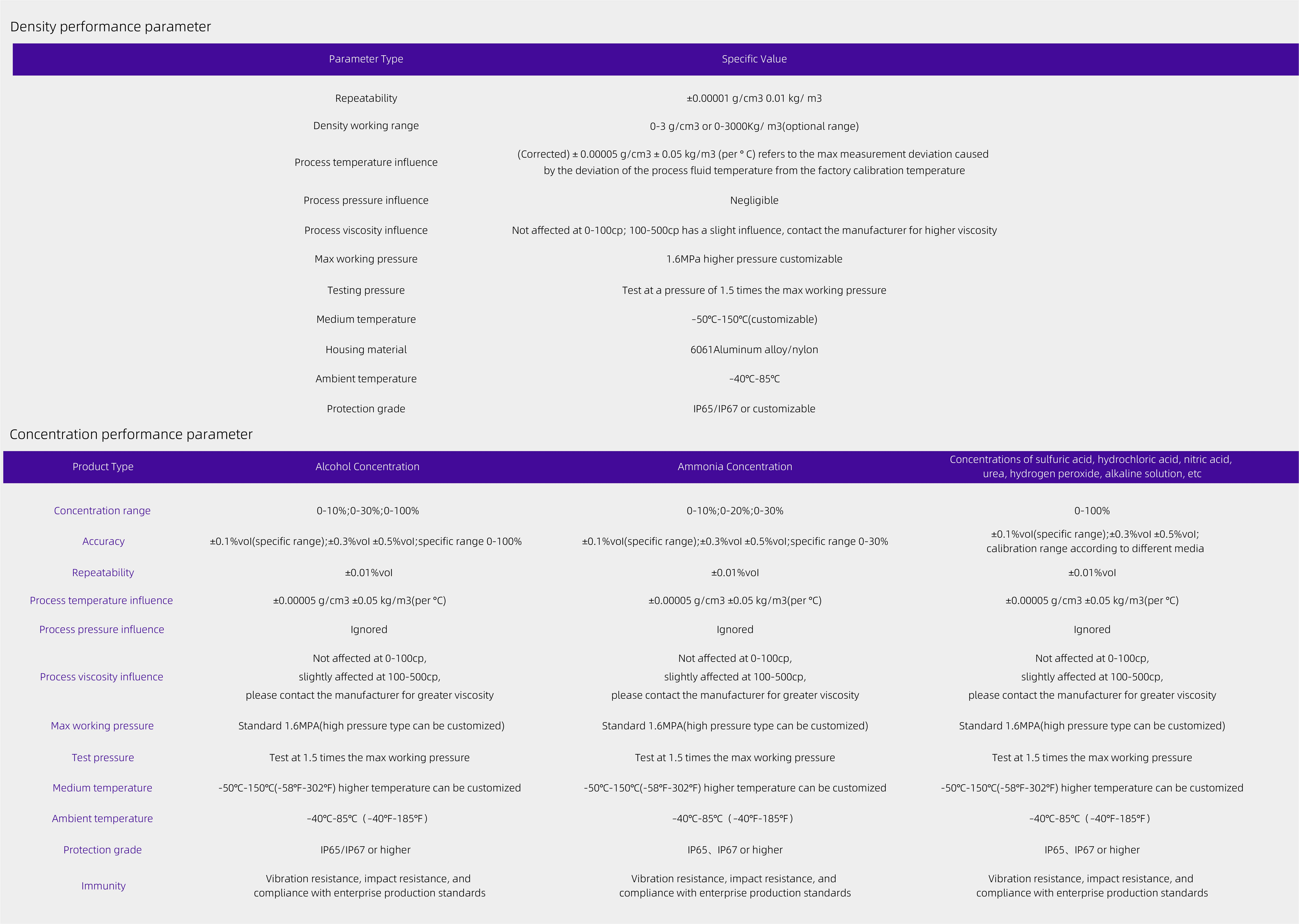

Specifications
.png)
