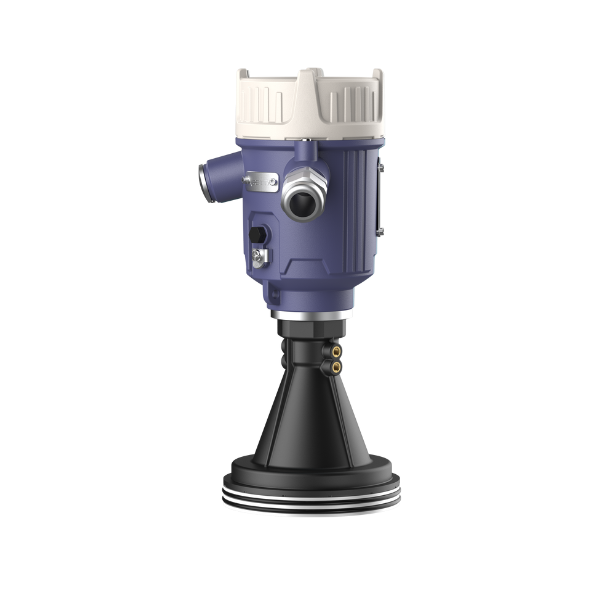

140GHz Radar Level Meter

140GHz Radar Level Meter

Application Scenario

The CFR6400 and CFR6900 series radar level meters use FMCW frequency modulated continuous wave technology for 140 GHz radar level meters. The radar emits a 120-140GHz high-frequency microwave signal with linear frequency modulation, which is emitted from the radar antenna. When the microwave signal encounters the surface of the measured medium, some of its energy is reflected back by the surface of the medium and received by the radar antenna. A part of the microwave transmitting signal in radar is mixed with the received signal to obtain the difference frequency signal.The differential frequency signal is obtained by Fourier transform algorithms such as FFT or DFT to obtain the differential frequency spectrum signal, thereby obtaining the frequency difference.According to the linear frequency modulation signal frequency difference is proportional to time thus the time difference is obtained. Based on the time difference and the distance between the antenna and the surface of the measured medium, the distance between the antenna and the surface of the measured medium can be calculated.

Advantage

Powerful computing power: (triple-core quad-core) LCD display, mainboard, microwave board, each with an independent MCU. Both the LCD and mainboard have a single ARM core, while the microwave board has a dual ARM core.
High focus：(The min beam angle can reach 3 °) Suitable for installation in containers with obstacles such as stirring, heating pipes, and ladders. A smaller beam angle allows the beam to avoid internal obstacles, without interfering echoes, ensuring accurate measurement by the instrument. Suitable for installation of long risers. Suitable for glass window installation.
Multiple debugging methods: Debugging via Bluetooth connection to radar(mobile phone, tablet). Debugging through upper computer software (RS485). Debugging through a HART communicator can display the echo curve. LCD debugging. Tank side monitor debugging.
Multi echoes processing capability: Used in conjunction with corresponding instruments,it can output the measured value of solid level and liquid level. Support switch quantity/4…20mA/HART/RS485

Specifications

Product Type
Applications
Max. Range
Process Temperature
Protection Rating
Certification
CPR6400 Liquid (Rod Antenna)
Liquid level measurement, general process conditions
50m
-40°C to +200°C
IP67
Ex ia IIC T6/T2 Ga, Exd ia
IIC T6/T2 Gb, Ex iaD tD A21
IP67 T80°C/T290°C;
CU-TR 012COC Certificate,
CU-TR 020 DOC Certificate,
Russian PAC Certificate,
ATEX, IECEX (in progress)
CPR6400 Integrated
Integrated level measurement for compact installations
50m
-40°C to +200°C
IP67
Ex ia IIC T6/T2 Ga, Exd ia
IIC T6/T2 Gb, Ex iaD tD A21
IP67 T80°C/T290°C;
CU-TR 012COC Certificate,
CU-TR 020 DOC Certificate,
Russian PAC Certificate,
ATEX, IECEX (in progress)
CPR6400 Process Sealed
Process-sealed liquid measurement, hygienic / sealed vessels
50m
-40°C to +200°C
IP67
Ex ia IIC T6/T2 Ga, Ex db ia
[ia Ga] Il C T6/T2 Gb, Ex tb[ia Da] IIC T80%C/T290°C Db,Ex db iajia Ga) IIC T6/T2 Gb,Ex tb [ia DajlC T80°C
/T290°C Db
CPR6400 Hygienic
Hygienic applications (food, pharmaceutical, bioprocessing)
50m
-40°C to +200°C
IP67
Ex ia IIC T6/T2 Ga, Ex db ia
[ia Ga] Il C T6/T2 Gb, Ex tb[ia Da] IIC T80%C/T290°C Db,Ex db iajia Ga) IIC T6/T2 Gb,Ex tb [ia DajlC T80°C
/T290°C Db
CPR6900 Solid (Plastic Horn Antenna)
Solid / bulk material level measurement
125m
-40°C to +200°C
IP67
Ex ia IIC T6/T2 Ga, Ex db ia
[ia Ga] Il C T6/T2 Gb, Ex tb[ia Da] IIC T80%C/T290°C Db,Ex db iajia Ga) IIC T6/T2 Gb,Ex tb [ia DajlC T80°C
/T290°C Db

Access detailed technical specifications by down loading our datasheet.

Download

Download

Get all the technical details you need by downloading our product specs.
