Microwave Level Switch

Application Scenario

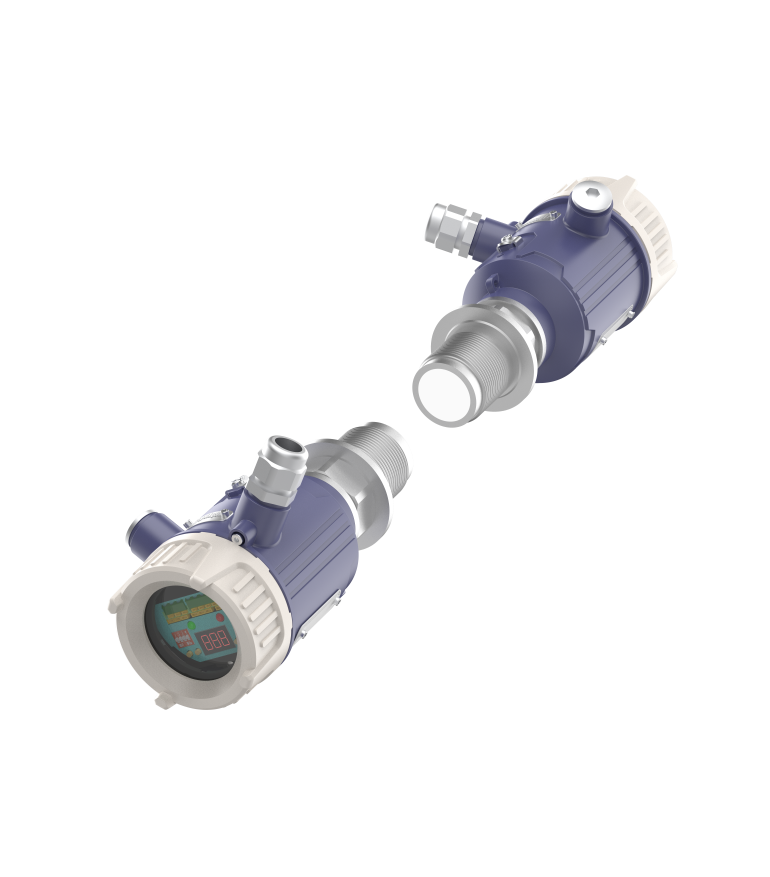

The transmitter and receiver are installed face-to-face, and the transmitter emits microwave signals. When the microwave is obstructed by materials, the receiver cannot receive the microwave signal or weak microwave signal, and the receiver outputs a relay signal.

Advantage

Digital display of energy values for easy viewing of instrument performance.

Supports parallel connection, with only one power supply line required for transmitter and receiver, facilitating on-site wiring.

Digital threshold setting can be accurately set according to on-site applications, improving instrument accuracy and sensitivity.

Transmitter self check function, real-time detection of instrument working status, to prevent false alarms caused by decreased transmitter energy value.

Multi channel output, each pair of instruments can be individually set with microwave signal frequency, effectively preventing interference caused by the close use of multiple pairs of microwave switches.

Specifications

Parameter Type	Specific Value
Type	CMS-210
Applicable Material	Particles, powders, bulk solids
Measuring Range	0-100m
Power Supply	24VDC / 220VAC / 110VAC
Signal Output	DPDT relay
Contact Rating	250VAC 2A
Power Consumption	<3W
Delay Time	0-999s adjustable
Frequency	24-26GHz
Beam Angle	20°
Ambient / Process Temperature	-40℃ to 80℃
Process Pressure	-1 to 4bar
Antenna Material	316L + PTFE
Protection Rating	IP67
Electrical Connection	M20×1.5 / 1/2″ NPT
Ex Certification	Ex d II C T6 Gb
