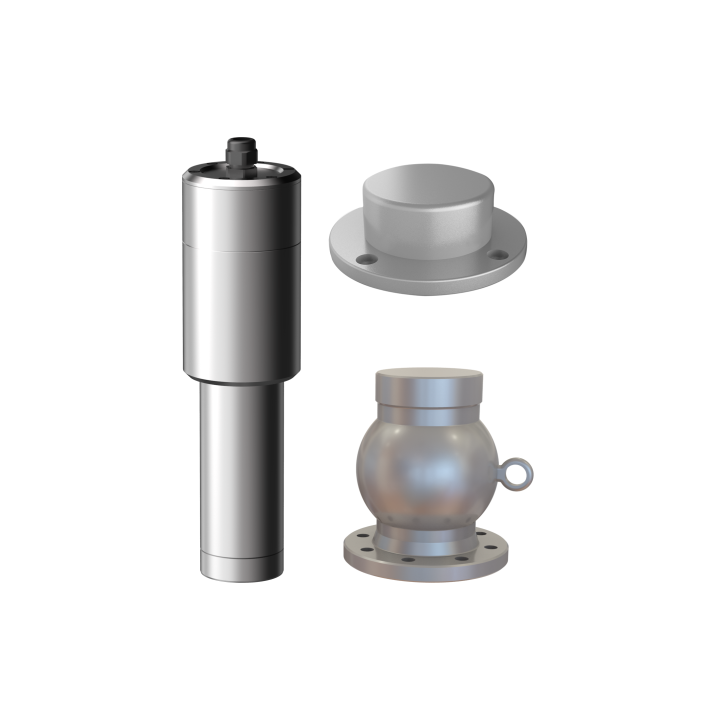

Na22 Density Meter

Application Scenario

Calculate the appropriate activity of the radiation source based on the measurement conditions, and the radiation device emits a beam of gamma rays. The detector receives the radiation rays, which will be attenuated when they act on the pipeline or container and the internal medium to be tested. Therefore, the detector calculates the material level, liquid level, density, interface, or serves as a limit switch based on the attenuation of the detected radiation rays.

Advantage

Using exempt grade Na22 radiation sources, environmentally friendly pollution-free.

Sensitive and high-precision, not affected by background radiation interference.

The detector is intelligent and has the ability to detect particle spectra.

Communication cascade and strong anti-interference ability.

Equipped with temperature compensation function.

Multiple detector specifications with strong adaptability.

Humanized operation interface.

Simple installation, no need for opening.

Support with remote debugging.

Specifications

Radiation Device

Parameter Type	Specific Value
Isotope Type	Cs-137 / Co-60
Activity	As required
Radiation Type	Gamma
Source Container	Stainless steel, sealed
Explosion Proof	Ex d IIC T6 Gb
Protection Rating	IP67
Operating Temperature	-40℃ to 80℃

Detector

Parameter Type	Specific Value
Detector Type	Scintillation detector (NaI)
Sensitivity	Adjustable
Signal Output	RS485 (Modbus)
Power Supply	24VDC
Explosion Proof	Ex d IIC T6 Gb
Protection Rating	IP67
Cable Length	≤200m
Operating Temperature	-40℃ to 80℃

Display Computing Host

Parameter Type	Specific Value
Display	OLED / LCD
Communication	RS485 (Modbus)
Power Supply	AC220V / DC24V
Output	4…20mA + 2× relay
Operating Temperature	-20℃ to 60℃
Mounting	Wall / panel mounted
Enclosure Material	Aluminum alloy
Protection Rating	IP65
