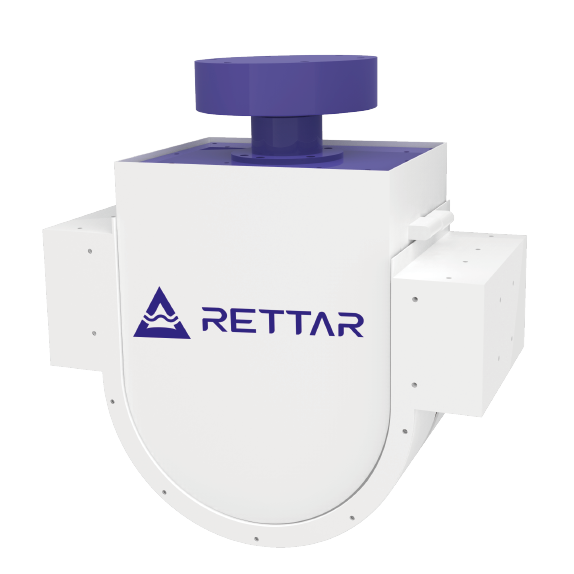

3DPro2501 Laser Scanner

Application Scenario

ClearView 3D is a laser scanning system for stockyard and stockpile management. With nano-film self-cleaning and dual dust protection, It delivers all-weather rellability. Real-time 3D visualization and 99.5% accuracy let you scan an entire yard in minutes and track materials instantly-fast, precise, and effortless.

Advantage

Engineered for Dusty Realities • Breakthrough dual-layer protection: nano-coated film + rugged cover • Al-powered self-cleaning keeps lenses clear, no manual upkeep • Quick-swap cartridge design ensures continuous operation

Unstoppable in Any Condition • Triple defense against dust, water, and fog • All-weather reliability for outdoor and indoor stockpiles

Inventory You Can Trust • Up to 99.5% accuracy, even in high-dust environments • Yard-wide scans completed in just 3 minutes

See Your Stockpiles in 3D • Real-time panoramic visualization • Full oversight of sheds, domes, yards, and stockpiles at a glance

Capture Every Volume • Zone-based classification for smarter management • Inbound/outbound tracking ensures total material transparency

Specifications

Model	3DPro2501-200	3DPro2501-100
Application	Large stockyards, sheds, bulk material storage, unmanned yards	Large stockyards, sheds, bulk material storage, unmanned yards
Range	1~210 m (10% reflectivity)	1~100 m (10% reflectivity)
Accuracy	±3cm (1σ)	±3cm (1σ)
Field of View	Horizontal: 360° / Vertical: 180°	Horizontal: 360° / Vertical: 180°
Resolution	H: 0.05° / V: 0.09°	H: 0.05° / V: 0.09°
Laser Wavelength	905nm	905nm
Laser Class	Class1 eye-safe	Class1 eye-safe
Ingress Protection	IP67	IP67
Power Supply	220VAC/9~32VDC	220VAC/9~32VDC
Power Consumption	25W	25W
Operating Temp.	-40℃~85℃	-40℃~85℃
Weight	8.5kg	8.5kg
Data Interface	Ethernet / Wireless	Ethernet / Wireless
Point Cloud Rate	7.2M points/sec	7.2M points/sec
Volume Accuracy	≥99.5%FS	≥99.5%FS
