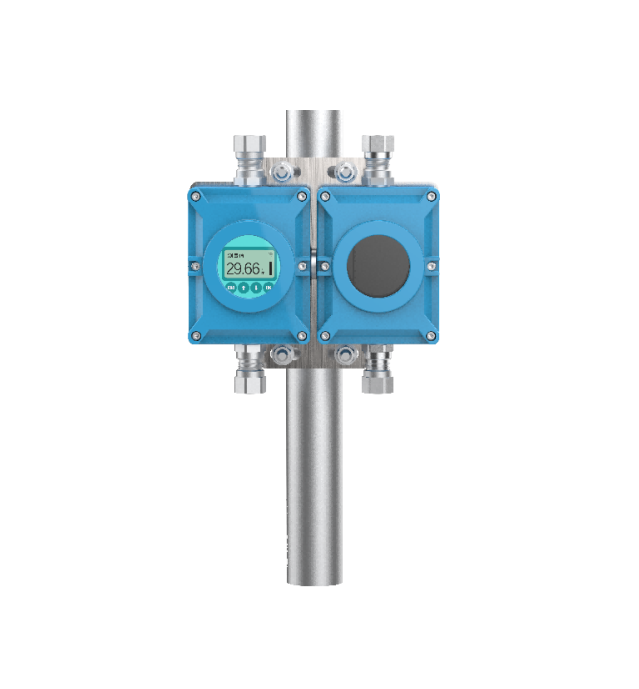

CTS5900 Tank Side Controller

CTS5900 Tank Side Controller

Application Scenario

The CTS5900 series multifunctional tank side controller can communicate with the liquid level measuring instruments, temperature measuring instruments and pressure measuring instruments on the storage tank through the fieldbus, reading the measurement data of the instrument and displaying it. It is also an information collection device at the same time, which transmits the data of on-site instruments to the central control room through a data bus.

Advantage

Graphical dot matrix LCD display, convenient operation.
It can support 220VAC power supply mode.
Support radar level liquid meter waveform observation and parameter setting operations.
Equipped with multiple built-in safety barriers, it can provide intrinsically safe power supply for on-site intrinsically safe instruments.
Support the display of average temperature and temperature at various points on multi-point thermometers.
It has two compartments: intrinsically safe and explosion-proof, supporting the opening of intrinsically safe compartments in explosion-proof areas.
Supports protocols such as HART, RS485 MODBUS, Rosemount TRL2, E+HRS485, and Honeywell Enrafu BPM.
Electronic circuits are equipped with surge protectors to reduce the probability of lightning damage during field installation.
Supports 2 switching inputs and outputs, and supports 2 4-20mA current outputs. Convenient on-site control and functional expansion.

Specifications

Parameter Type
Specific Value
Model
Signal Isolator / Multifunction Transmitter (inferred)
Display
5-digit LED display
Display Resolution
128×64 graphic LCD
Refresh Time
200ms
Communication
HART + RS485 (Modbus)
HART Communication Distance
≤1000m
Modbus Communication Distance
≤1300m
Power Supply
18-55VDC / 90-264VAC
Relay Output
2× SPDT, 250VAC 3A
Current Output
4…20mA (active / passive selectable)
Current Input
4…20mA, isolated
Intrinsic Safety Parameters
Ui ≤ 30V, Ii ≤ 100mA, Pi ≤ 0.75W, Ci ≤ 50nF, Li ≤ 10µH
Digital Input (DI)
2× dry contact, 24VDC
Rated Power Consumption
<10W

Access detailed technical specifications by down loading our datasheet.

Download

Download

Get all the technical details you need by downloading our product specs.
